Voltage regulator with fixed positive output voltage. Designed to use as secondary power supply sources.

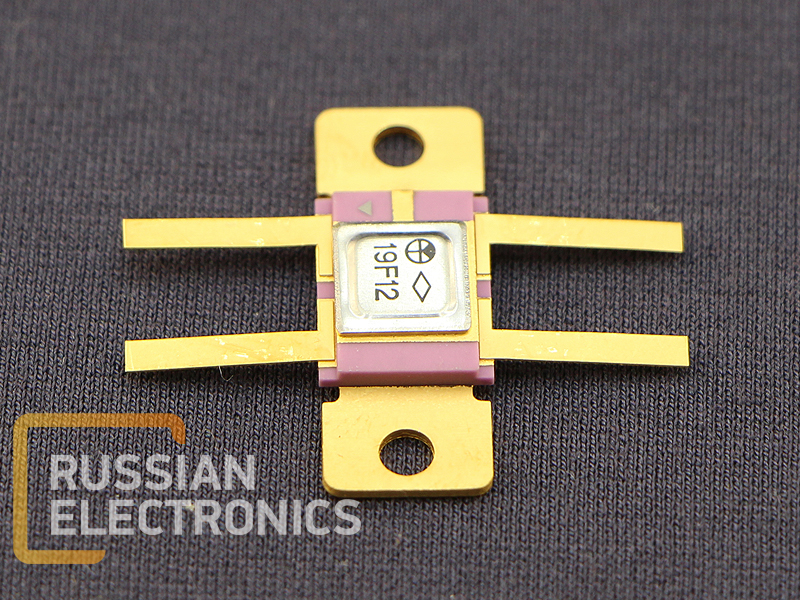

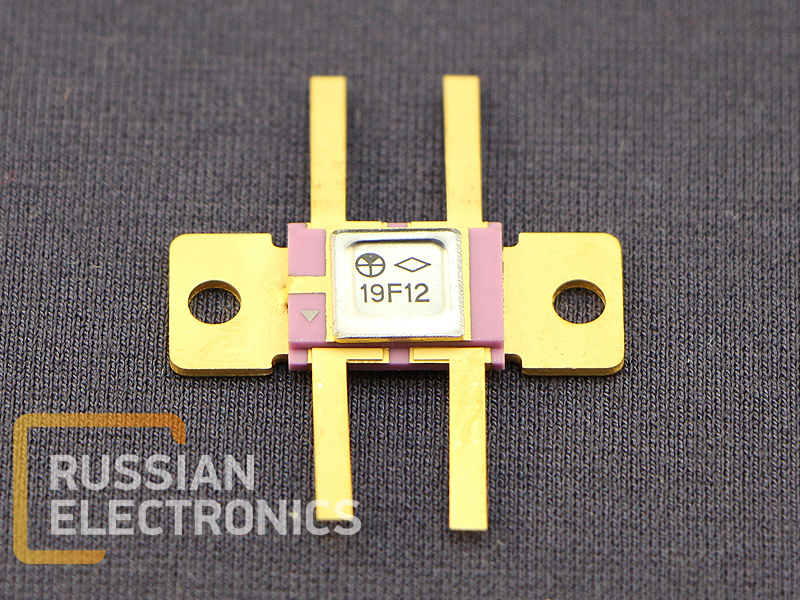

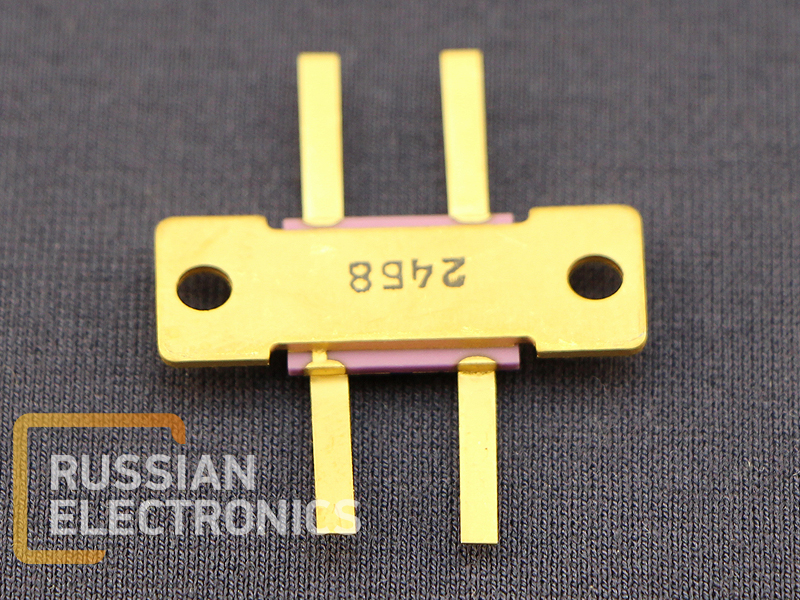

Case type: metal-ceramic, 4116.4-3

Pin layout

17

Input

2

Output

8

Common

11

NC

Technical parameters (at +25 oC)

not less than

not more than

Input voltage, V

35

Output voltage (at Uin = 20V, Iout = 10 mA), V

11.64

12.36

Voltage instability (at Uin = 20 V, Uin~ = +15 V, Iout = 10 mA), %/V

0.05

Current instability (at Uin = 18 V, Iin~ = 1.5 A), %/A

0.67

Temperature coefficient of voltage (at Uin = 20 V, Iout = 10 mA), %/oC

0.02

Output current, A

1.5

Power dissipation (at case temperature +25 oC), W

8.0
