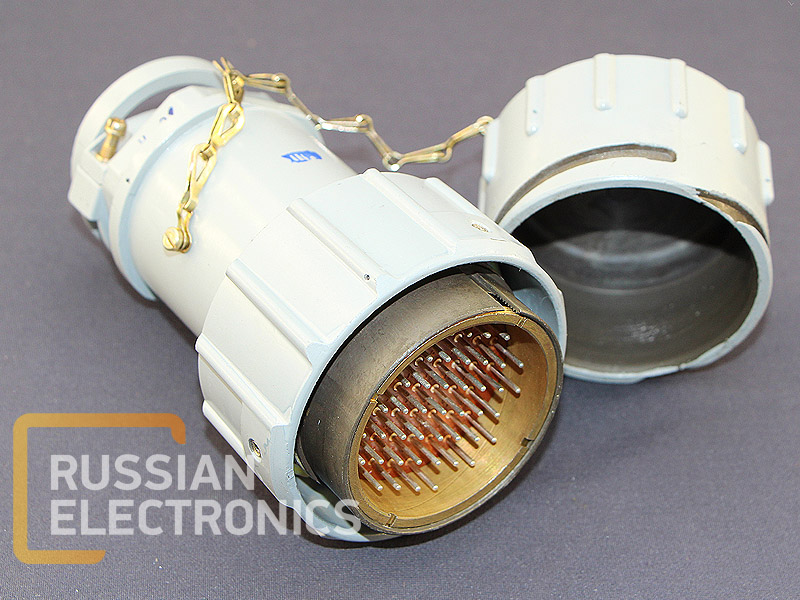

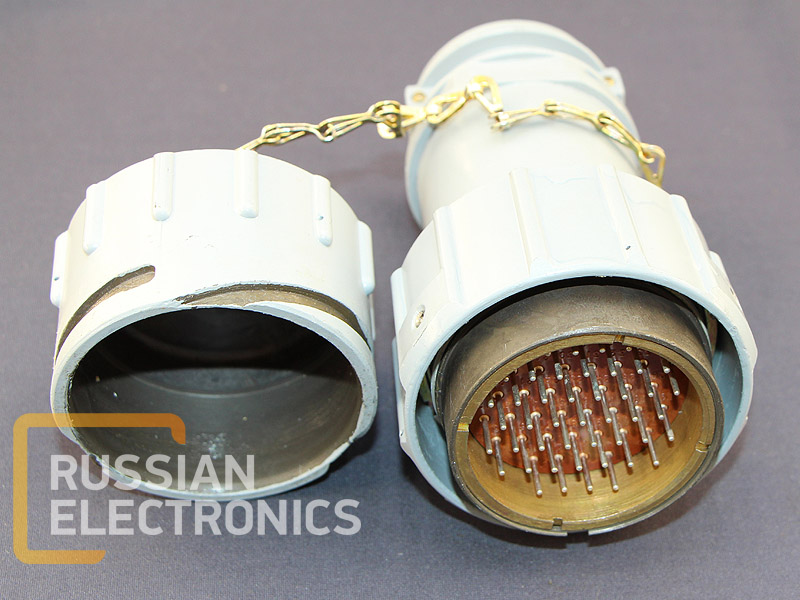

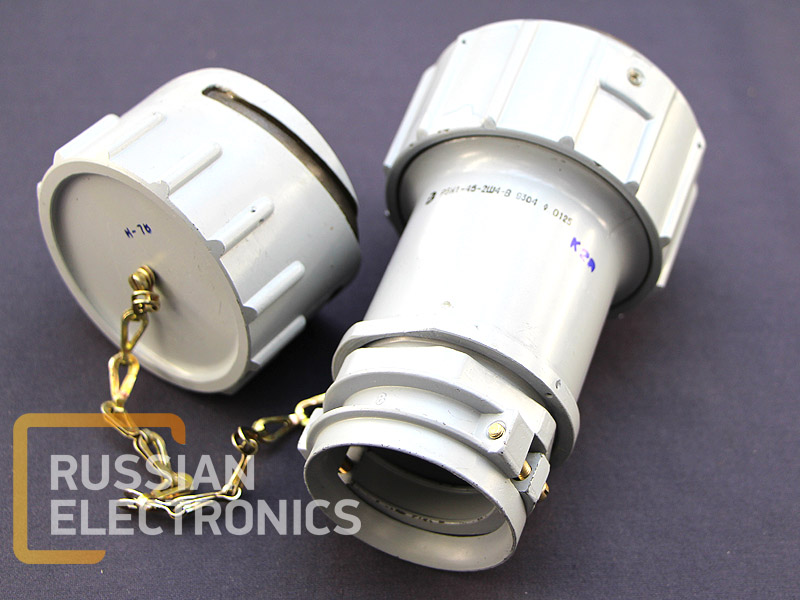

Quick-connect connector with dust and splash protection. Connectors can be used in DC and AC (up to 3 Mhz) circuits at voltages up to 700V.
Connectors consist of a plug and a socket (both unit-side or cable-side).
Connectors are polarized with a single key. Cable-side connector have a locking device.
Coupling is allowed if a unit-side and a cable-side of a connector have similar digital indexes.
Connectors are suitable for external mounting, climate version: all-climate
Annotation breakdown
Annotation example: RBN1 – 3 -18Sh(G)2
- RBN1 – connector type
- 3 – number of contacts (3,4,5,6,7,12,16,20,26,30,37,45)
- 18 – contacts layout (number) (2,5,17,18,19,26)
- Sh(G) – connector part, ( Sh – plug, G – socket)
- 2 – design version,(1-panel munted, 2 –cable mounted,angular,3-cable mounted w/o shel (cable-cable), 4-cable mounted,straigh
Technical parameters
| Contacts diameter, mm | 1,5 | 2.5 | 3.5 | 5,5 | 9,0 | |
| Contacts resistance, not more than, mOhm | 7 | 4 | 2 | 1 | 0,7 | |
| Insulation resistance in normal conditions, MOhm | 5000 | |||||
| Number of connection-disconnection cycles | 100 | |||||
| Minimum lifetime, h | 1000 | |||||
| Shelf life, years | 25 | |||||
Operational limits
| Connectors are resistant to special conditions |
|
| Sinusoidal vibration frequency, Hz acceleration, m/s2 |
1..5000 100(10) |
| Single mechanical impact, m/s2 (g) | 5000 (500) |
| Multiple mechanical impacts, m/s2 (g) | 1500 (150) |
| Ambient air temperature, oC | -60..+95 |
| Diminished air pressure, Pa (mmHg) | 5300 (400) |
