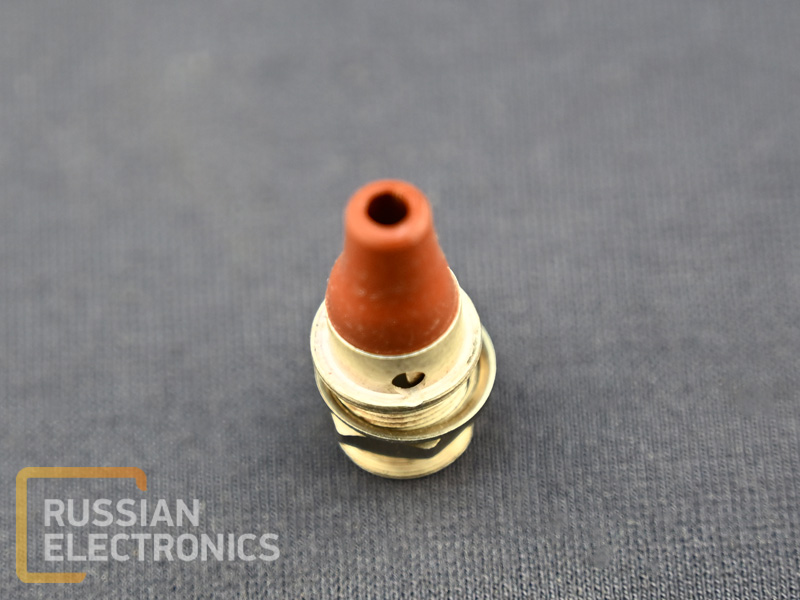

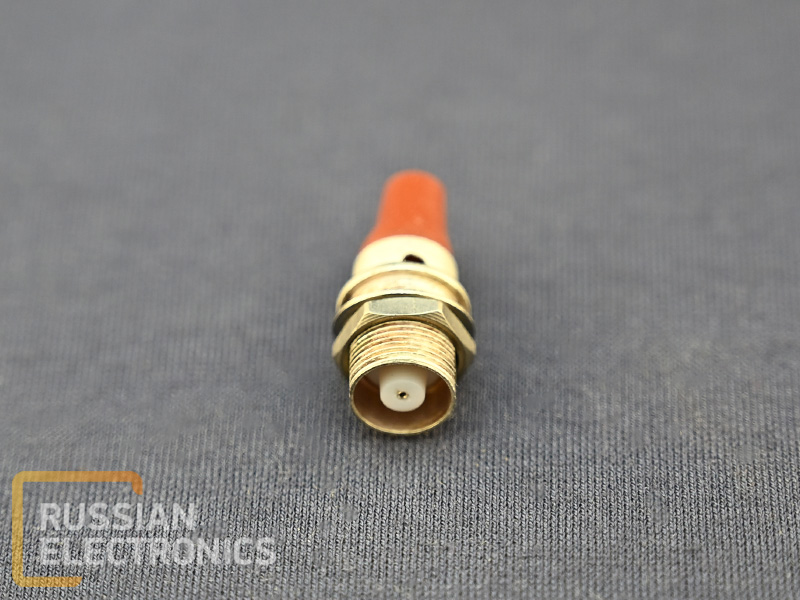

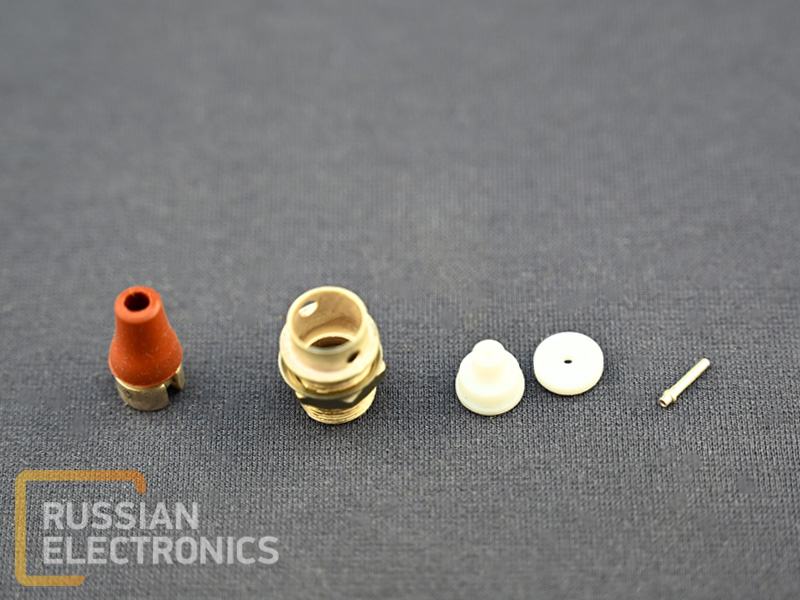

* Pictures are placed for illustration purpose only. Appearance of real component may differ.
SR-75 series of connectors is designed for operation in radio frequency circuits.
Wave resistance - 75 Ohm
Operating voltage under normal conditions is 500 V
Junctions number - 500
Contact resistance: pin - socket and housing - housing - 0.01 Ohm
Operating temperature ranges:
- connectors with PTFE insulation - from -60 to +155 ° С
- connectors with polyethylene insulation - from -60 to +85 ° С
Minimum shelf life - 15 years
Structure of the symbol:
( i.e.SR-50-103FV )
SR - radio frequency connector;
75 - value of the wave resistance, Ohm;
103 - development serial number;
F or P - insulating material - PTFE or polyethylene;
M - modernized version of the connector;
V - all-climatic modification
