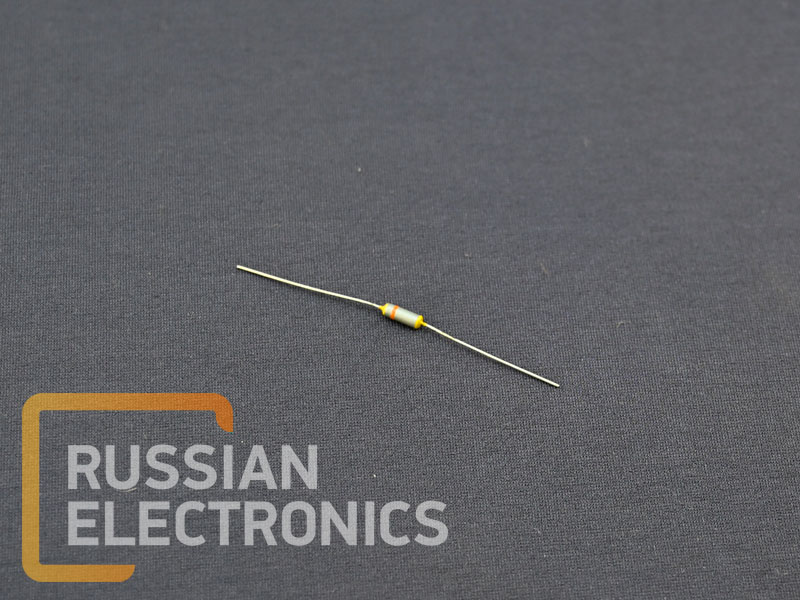

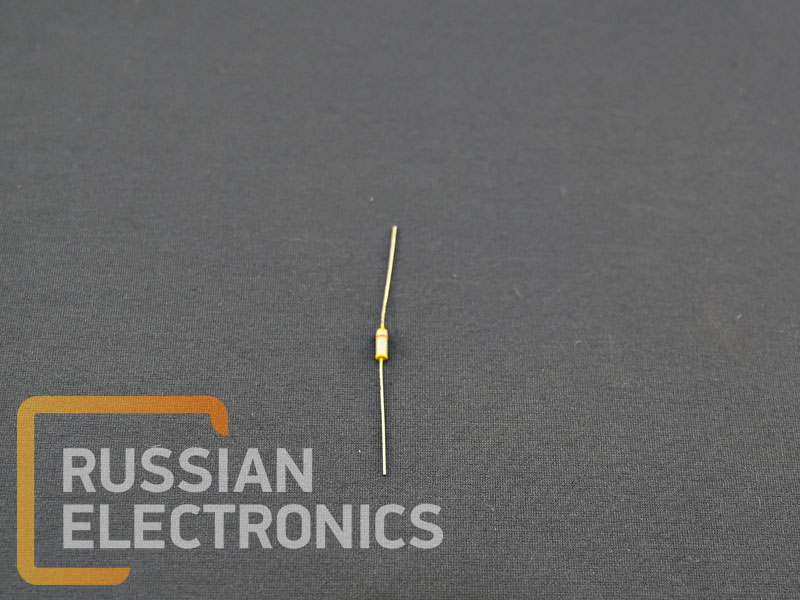

2S133V is a silicon diffused voltage regulator (Zener diode) of low power, designed to regulate the nominal voltage of 3.3 V over the 3 to 81 mA Zener current range. The package is the glass type with flexible leads. Weight: less than 1 g
Performance Characteristics:
Dissipation power, W0,125
Minimum Zener voltage, V3,1
Nominal Zener voltage, V 3,3
Maximum Zener voltage, V3,5
Static resistance, Ohm (at Ist = 5mA)150
Zener voltage temperature coefficient, %/оС 0.11
Zener voltage instability over time, V 1
Minimum Zener current, mA1
Maximum Zener current, mA37,5
Operating temperature, оС -60...125
